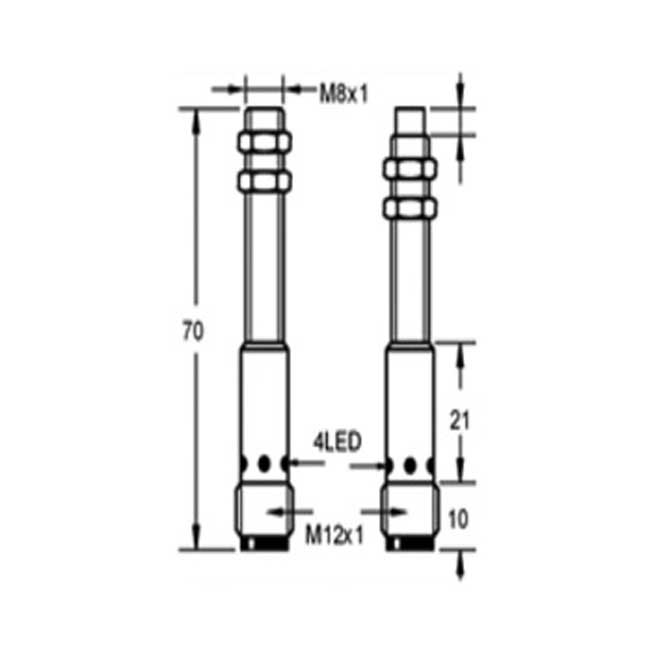

M8-4pin-DC
Diameter |
M8 |
||
 Flush Switching Distance |
1mm | 2mm | 3mm |
 non-Flush Switching Distance |
2mm | 4mm | 6mm |
| Housing Material | Nickel plated brass | ||
| With LED Without LED |
|
||
| Max Load Current | 250mA | ||
| Supply Voltage | 10-30 Volt DC | ||
| Switching Frequency | 1KHz | ||
| Response Time | 0.2ms/0.2ms | ||
| Protecting category | IP67 | ||
| Operating Temperature | -25ºC- +70ºC | ||
| Short Circuit Protection | Yes | ||
| Connecting Type | M12 connector | ||
| DC 3 wire 10-30V NPN N.O. | STI-M8NO-1.5/2-C4 | ||
| DC 3 wire 10-30V NPN N.C. | STI-M8NC-1.5/2-C4 | ||
| DC 3 wire 10-30V PNP N.O. | STI-M8PO-1.5/2-C4 | ||
| DC 3 wire 10-30V PNP N.C. | STI-M8PC-1.5/2-C4 | ||
