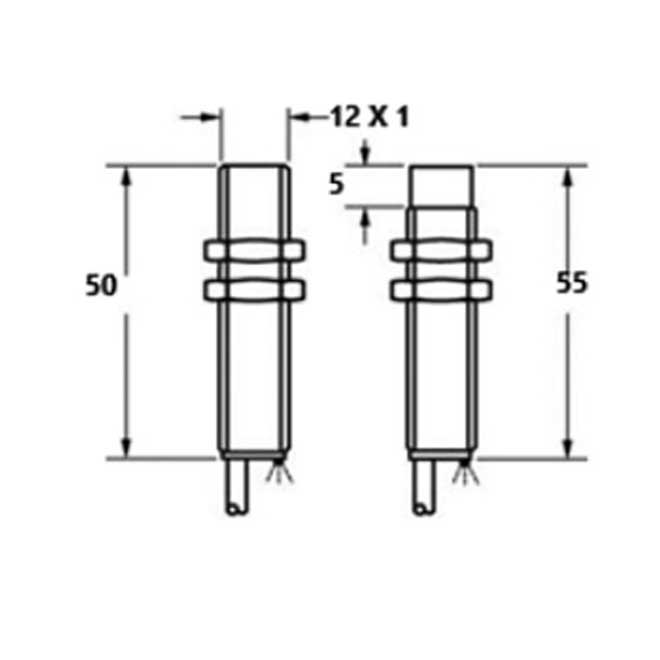

M12 X 50-3Wire-DC

Diameter
M12
Inductive Proximity Switches Flush Switching Distance 2mm 4mm 6mm
Inductive Proximity Switches non-Flush Switching Distance 4mm 8mm 10mm
Housing Material Nickel plated brass
Inductive Proximity Switches With LED Inductive Proximity Switches Without LED Inductive Proximity Switches
Max Load Current 250mA
Supply Voltage 10-30 Volt DC
Switching Frequency 1KHz
Response Time 0.2ms/0.2ms
Protecting category IP67
Operating Temperature -25ºC- +70ºC
Short Circuit Protection Yes
Connecting Type 2mtrs,3core pvc cable
DC 3 wire 10-30V NPN N.O. STI- M12NO- 2.5/4
DC 3 wire 10-30V NPN N.C. STI- M12NC- 2.5/4
DC 3 wire 10-30V PNP N.O. STI- M12PO- 2.5/4
DC 3 wire 10-30V PNP N.C. STI- M12PC- 2.5/4
