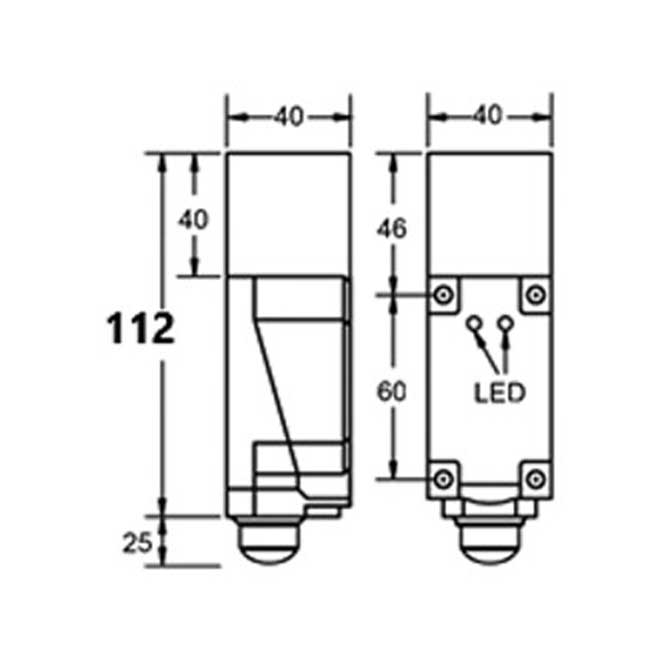

40 X 40 X 112 - DC Block

Switching Distance, Sn: mm 15 mm
Housing Material Plastic
Inductive Proximity Switches With LED Inductive Proximity Switches Without LED Inductive Proximity Switches
Max Load Current 250mA
Supply Voltage 10-30 Volt DC
Switching Frequency 100Hz
Response Time 1ms/1ms
Protecting category IP67
Operating Temperature -25ºC- +70ºC
Short Circuit Protection Yes
Connecting Type Terminal
DC 3 wire 10-30V NPN N.O. STI-Q40NO-15
DC 3 wire 10-30V NPN N.C. STI-Q40NC-15
DC 3 wire 10-30V PNP N.O. STI-Q40PO-15
DC 3 wire 10-30V PNP N.C. STI-Q40PC-15
